Micro-Node Mini Simplex

MICRO-NODE MINI SIMPLEX RADIO UNIT

This Mini Simplex Node integrates a low power (200mw) Alinco DJ-C7 dual band HT radio inside the stand-alone Micro-Node for a complete simplex mobile solution. Combining the low power requirement of the Micro-Node (700ma) and the DJ-C7 HT (250ma when transmitting) for a total current consumption of less than 1 Ah. This configuration is ideal for the RV'er who is traveling the country and wants to stay in contact with their friends and family via the IRLP or Echolink systems. The total package measures just 6.9" (175mm) W x 7.0 (178mm) L x 2.4 (61mm) H.

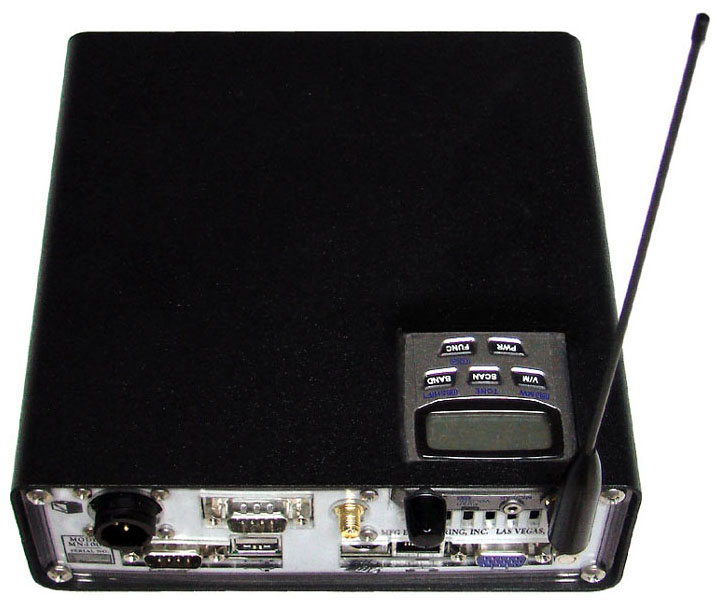

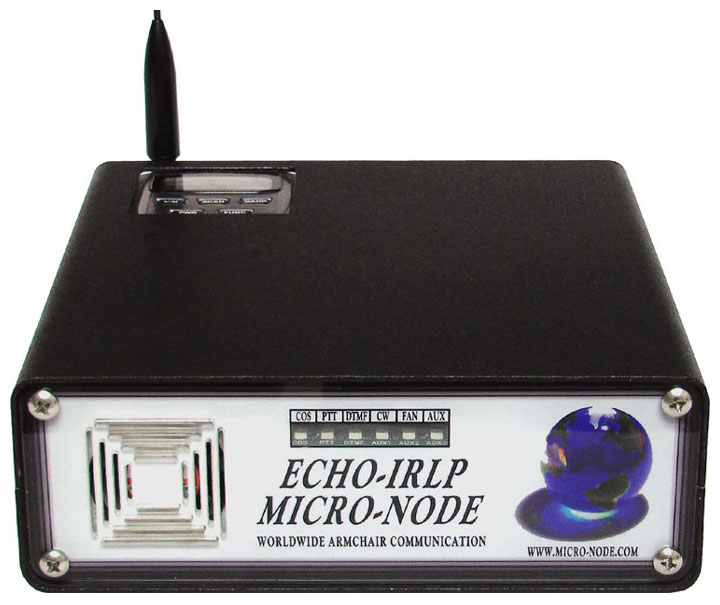

MN-2200 Micro-Node Mini Simplex with Alinco DJ-C7 Radio installed

ALINCO DJ-C7 Radio Specifications
Frequency Coverage	TX/RX: 144-147.995MHz/420-449.995MHz
Modulation	TX: 16k0F3E (FM) RX: WFM/FM/AM
Receiver System	Double Conversion Super-heterodyne (WFM: Single CSH)
Channel Step	Auto/5/6.25/8.33/10/12.5/15/20/25/30/50/100/125/200KHz
Memory Channels	200ch with 5 PS pairs, 1 priority and 1 auto-repeater pair
Tone Encoder	39 tone encoder standard
Tone Decoder	39 tone decoder standard
Offset range	0 ~ 99.995MHz
Deviation	+/- 5KHz
TX Output	300mW with EBP58N / 500mW with 6Vdc power-source
TX Spurious emissions	less than -60dB
Frequency Stability	-7 to +3ppm (-10 ~ + 50 degrees C.)
Sensitivity (12dBSINAD)	Ham-bands VHF: -14dBu UHF: -12dBu / WFM -3dBu average
Selectivity	+/-12KHz or more(-6dB) +/-35KHz or less (-60dB)
I.F.	1st: 50.85MHz(WFM 10.7MHz) 2nd: 450KHz
