Micro-Node Simplex

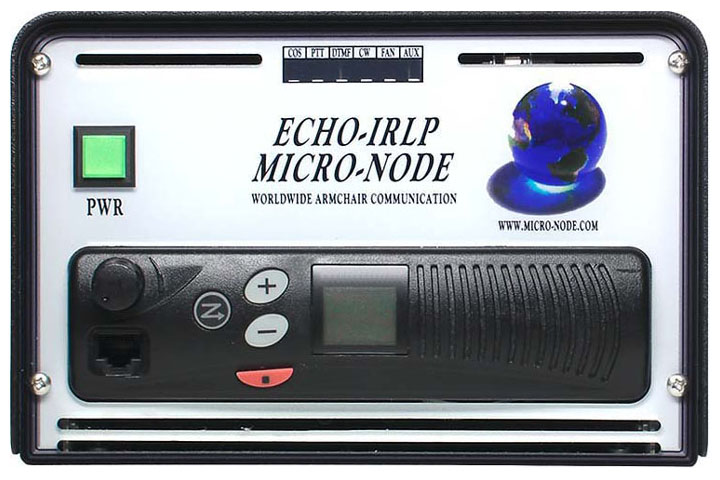

MICRO-NODE SIMPLEX RADIO UNIT

The simplex Micro-Node integrates the quality of a UHF or VHF commercial narrow band radio with IRLP for superb audio and reliability. The narrow band front end filtering of these radios minimize inter-mod. The adjustable 10-25 watt output amplifier is protected against thermal run away and antenna mismatches. All this in a compact package measuring just 7.9" (200mm) W x 7.5 (190mm)L x 5.1 (130mm) H.

MN-2000 Micro-Node Simplex with 2 Channel Radio installed
MN-2100 Micro-Node Simplex with 16 Channel Radio installed

Micro-Node Commercial Radio Specifications
	VHF	UHF
Frequency	136-156 MHz	440-470 MHz
Channels	2 or 16	2 or 16
Size	1.73" x 6.61" x 4.25"	1.73" x 6.61" x 4.25"
Power Output	10-25W	10-25W
Channel Spacing	20/25/30 kHz 12.5 kHz	20/25/30 kHz 12.5 kHz
Sensitivity (12dB SINAD)
20/25/30 kHz	.30µV	.30µV
12.5 kHz	.35µV	.35µV
