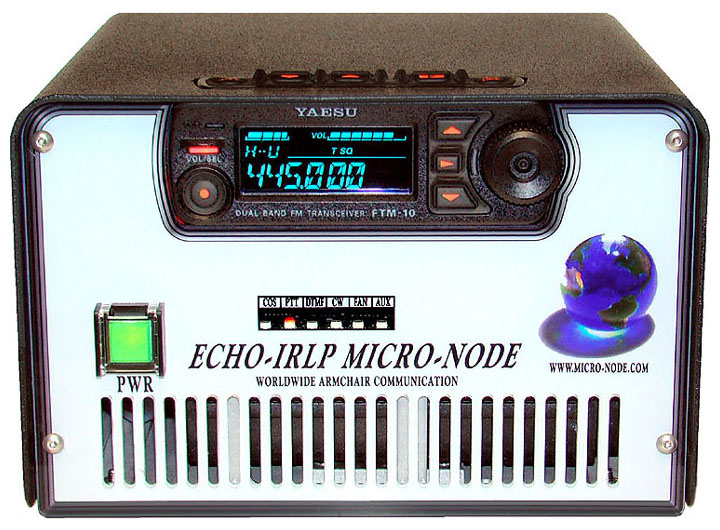

The YAESU simplex Micro-Node integrates the quality of the new
Yaesu FTM-10 VHF/UHF radio with IRLP for great operation flexibility. All this in a compact package measuring just 7.9"
(200mm) W x 7.5 (190mm) L x 5.1
(130mm) H.
MN-2300 ($1695) Micro-Node Yaesu Simplex with Yaesu FTM-10 VHF/UHF Radio
installed
| YAESU FTM-10R Radio Specifications |
| Receive Frequency Range |
0.5 - 1.8 MHz (AM BC)
76 - 108 MHz (FM BC)
108-137 MHz (Air Band)
137-174 MHz (144 MHz HAM)
174-222 MHz (GR1 VHF TV)
300-420 MHz (GR2 )
420-470 MHz (430 MHz HAM)
470-800 MHz (GR1 UHF TV)
800-999 MHz (GR2 USA Cellular Blocked) |
| Transmitt Frequency Range |
2 m / 70 cm Amateur Bands |
| RF Power Output |
50 / 20 / 5 W (2 m)
40 / 20 / 5 W (70 cm) |
| Emission Types |
F3E, F2D |
| Channel Steps |
5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 / 200 kHz |
| Sensitivity |
5 uV TYP for 10 dB SN (0.5-1.7 MHz, AM)
2 uV TYP for 12 dB SINAD (76-108 MHz, WFM)
0.8 uV TYP for 10 dB SN (108-137 MHz, AM)
0.2 uV for 12 dB SINAD (137-140 MHz, FM)
0.25 uV for 12 dB SINAD (150-174 MHz, FM)
1 uV TYP for 12 dB SINAD (174-222 MHz, WFM)
0.8 uV TYP for 10 dB SN (300-336 MHz, AM)
0.25 uV TYP for 12 dB SINAD (336-420 MHz, FM)
0.2 uV for 12 dB SINAD (420-470 MHz, FM)
5 uV TYP for 12 dB SINAD (470-540 MHz, WFM)
5 uV TYP for 12 dB SINAD (540-800 MHz, WFM)
0.4 uV TYP for 12 dB SINAD (800-899.99 MHz, FM)
0.8 uV TYP for 12 dB SINAD (900 - 999.99 MHz, FM) |
| Frequency Stability |
5 ppm @ 14 Deg F ~ +140 Deg F (10 Deg C ~ +60 Deg C) |
| Squelch Sensitivity |
Better than 0.16 uV (Amateur Band) |
| Selectivity |
NFM, AM 12 kHz / 30 kHz (6 dB / 60 dB) |
| Receiver |
FM / AM: Double-Conversion Super heterodyne
WFM: Triple-Conversion Super heterodyne
AM / FM Radio: Single-Conversion Super heterodyne |
| I.F. |
FM / AM: 1st: 47.25 MHz, 2nd: 450 kHz
WFM: 1st: 45.8 MHz, 2nd: 10.7MHz, 3rd: 1MHz
FM Radio: 130 kHz, AM Radio: 50 kHz |
|
